CM Series tube laser cutter metal plate fiber laser cutting machine

Model CM stainless steel pipe plate cnc tube fiber laser cutting machine

CM One machine for two purposes,

CM A variety of pipes with high fitsaving cost.

CM Cast aluminum beam with good

CM Welding bed, with higher precision dynamic performance and high stability. and good stability. (optional casting)


  Contact Now
Product Details

CM Series tube laser cutter metal plate fiber laser cutting machine

tube laser cutter machine,fiber laser cutting machine,metal plate fiber laser cutting machine




Model CM-Type plate&tube dual-purpose machine

stainless steel pipe plate laser cutting machine,cnc tube laser cutting machine


Produt Introduction:

The laser plate and tube all-in-one desktop device is outfitted with extraordinary expert collets and fixtures pipes of distinct shapes and sizes can be processed accurately.

Laser tube reducing is a manufacturing effectivity with high, effective and bendy technology, the operator can alter the layout scheme besides affecting it.

The total product manufacturing process;

The higher benefit is that cease customers can manipulate the manufacturing of brief model or medium model barring make a giant quantity of templates so that you can reply extra rapidly to consumer needs, which does no longer require casting model.

In the metallic processing industry, plate tube built-in laser reducing desktop is greater and extra broadly used.

Many steel processing producers have each the wishes of processing steel plates and metallic pipes.

Plate tube built-in laser reducing computing device is naturally the first choice, which can meet the processing wants of customers, It can additionally keep tools procurement value and use one desktop for a couple of purposes.

The foremost physique of the laser plate and tube all-in-one laptop adopts the welding bed process, which has excessive mechanical strength, notably quick manufacturing cycle, handy to prepare manufacturing and decrease thermal sensitivity.

Advanced technology

The exceptional reducing method database can raise out different sensible lowering for exceptional materials, optimize the lowering surface, decrease a wider fluctuate of materials, faster speed, greater great and reduce cost, and can be utilized to the full insurance plan of low-power to high-power lasers.

The laser head can robotically preserve away from obstacles. The laser head can raise out immoderate dynamic response, predict limitations in improve and defend the laser head to the largest extent.

Cast aluminum beam is fast. Aluminum alloy has the metal characteristics of moderate weight and sturdy rigidity, which is conducive to high-speed movement in the machining process, and immoderate flexibility is conducive to high-speed reducing of a wide variety of images on the groundwork of immoderate precision.


Product Specification:

ModelCM
Work Processing Area3050mm*1530mm4000mm*2000mm6100mm*2500mm8100mm*2500mm
Laser Sources Power1000/2000/3000/4000/6000W
Position Accuracy±0.03mm
X-Y Simultaneous Speed100m/min
  Maximum Tube
Processing Length
3000mm                6000mm              9000mm
Tube Cross Section ShapeRound Tube, Square Tube, Rectangular Tube, Oval Tube, Ob-round
Tube, L-Angle Steel, C-Channel Steel and other type of pipes
Tube Size RangeRound Tube:Φ10-Φ230mm Square Tube:□10-□160mm
Oval Tube:170mm≥ Side Length ≥20mm,
Outer Diameter≤230mm

Sample :

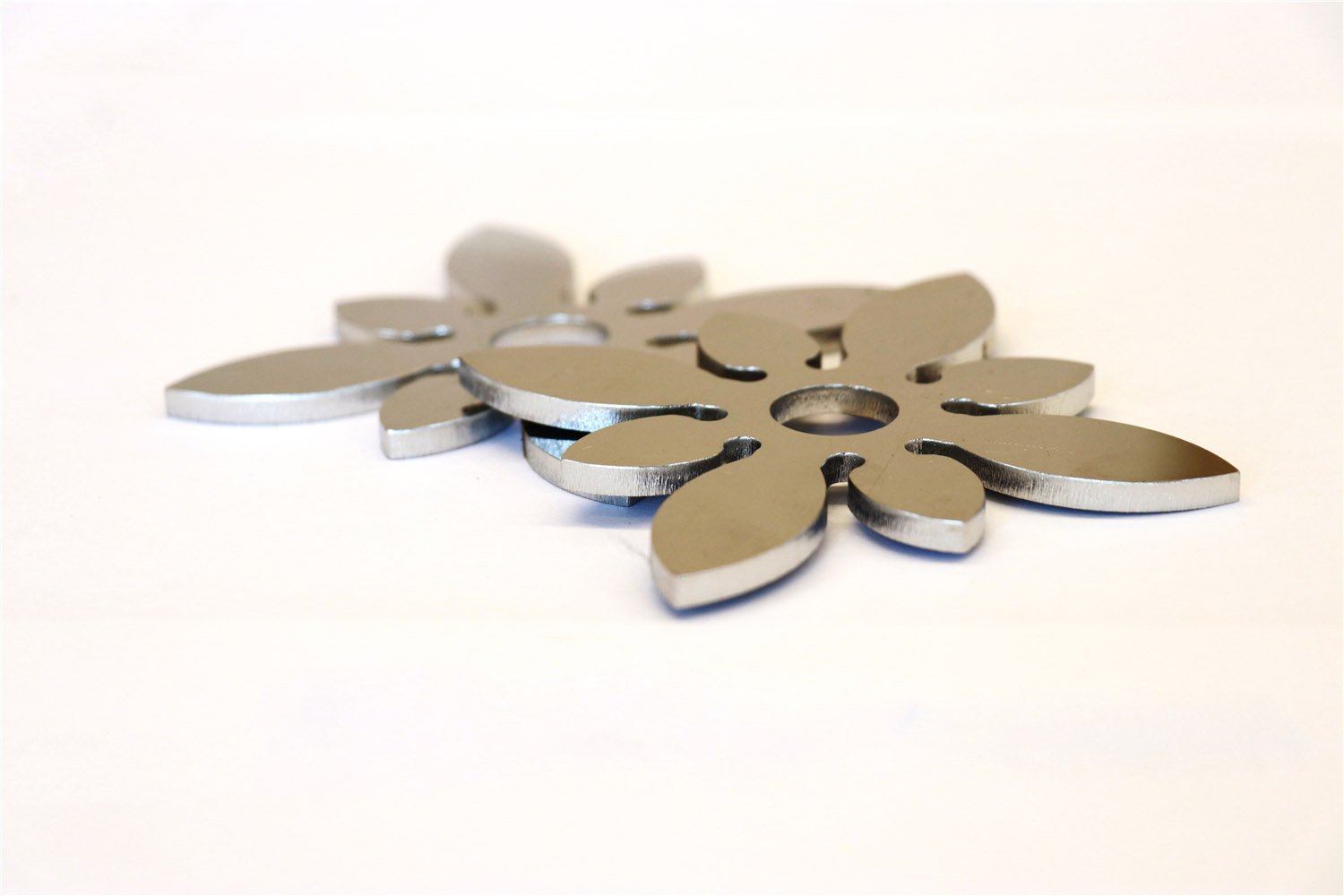

laser cutting machine .pngtube laser cutting machine price .pngtube laser cutting machine .png

plate metal sheet cutting machine .jpg



Packing:


Model CM stainless steel pipe plate  fiber laser cutting machine


Model CM stainless steel pipe plate  fiber laser cutting machine


Our Group:

Yida Laser has been focusing on fiber laser cutting industry since 2010 for cutting metal , is located in Zichuan, one of the top 100 industrial areas in China.

 The laser reducing device guided by "excessive efficiency, excessive overall performance and excessive precision" is extensively used in  mechanical gadget, electric gadget, marketing and marketing signs, sheet steel production, precision parts, virtual products, craft gifts, hardware manufacturing, digital components automobile, steel, shipbuilding, machinery, aerospace, countrywide protection and rail transportation.

Yida laser makes a speciality of large, medium and small layout laser reducing machines.

Closely following the global frontier and in near cooperation with world-well-known laser helping providers which includes the United States, Japan, Germany, Switzerland and United Kingdom, the evolved laser gadget has excessive photoelectric conversion rate, right beam high-satisfactory and solid overall performance.

In particular, the solid-country laser reducing device occupies a main role in Asia in phrases of reducing thickness and reducing speed.


Our Factory:

Model CM stainless steel pipe plate  fiber laser cutting machine


Certificates:


Model CM stainless steel pipe plate  fiber laser cutting machine


Contact Us:

Jinan Yida Machine Tool Co., Ltd

Address: Room J1 304, high tech Wanda office building, Jinan area, Shandong pilot Free Trade Zone, China

Tel: +8653182899697

Email: yd@yd-laser.com

Function&parameter List
●standard configuration,         ○optional configuration,
×No configuration required
C6MC4MC3M

Item

Subitem

basic parameter

Working area
6100mm*1524mm4000mm*1524mm3050mm*1530mm

Max. linkage speed
91m/min91m/min91m/min

Tube size range
Round tube    Φ20-Φ230mm
Square tube   □20 - □160mm
Rectangular tube:
170mm≥Side length≥20mm,
Circumscribed circle diameter≤230mm
Round tube    Φ20-Φ230mm
Square tube   □20 - □160mm
Rectangular tube:
170mm≥Side length≥20mm,
Circumscribed circle diameter≤230mm
Round tube    Φ20-Φ230mm
Square tube   □20 - □160mm
Rectangular tube:
170mm≥Side length≥20mm,
Circumscribed circle diameter≤230mm

Chuck maximum load
100kg  16kg/m100kg  16kg/m100kg  16kg/m

Optical system

Laser source

MAX/IPG

MAX/IPG

MAX/IPG

laser head

Ospri

Ospri

Ospri

mechanical system

Machine bed

Mortise-and-tenon type plate welded segmented bed

Mortise-and-tenon type plate welded segmented bed

Mortise-and-tenon type plate welded segmented bed

Chuck drive types

Pneumatic chuck

Pneumatic chuck

Pneumatic chuck

Max. length of tube

C-M3/6 tube maximum length is 3m or 6m

C-M3/6 tube maximum length is 3m or 6m

C-M3/6 tube maximum length is 3m or 6m

X-axis、Y-axis、Z-axisServo motor and driver

 Japan Fuji/France Schneider

 Japan Fuji/France Schneider

 Japan Fuji/France Schneider

Linear Rails

Made in Taiwan

Made in Taiwan

Made in Taiwan

Rack

Made in Taiwan

Made in Taiwan

Made in Taiwan

Electrical system


Control system
FSCUTFSCUTFSCUT

Proportional gas valve

 Japan SMC/Germany AVENTICS

 Japan SMC/Germany AVENTICS

 Japan SMC/Germany AVENTICS

O2 Cutting gas control valve

Japan SMC

Japan SMC

Japan SMC

N2 Cutting gas control valve

Japan SMC

Japan SMC

Japan SMC

Intelligent alarm

Acceptable file formats, sheet cutting
G文件、DXF、DWG、PLT、ENG
G file、DXF、DWG、PLT、ENG
G文件、DXF、DWG、PLT、ENG
G file、DXF、DWG、PLT、ENG
G文件、DXF、DWG、PLT、ENG
G file、DXF、DWG、PLT、ENG

Acceptable file formats, pipe/tube cutting
IGSIGSIGS
